Goodmatchup

12 Volt 10000 BTU rv air conditioner with heat unit,rv roof air conditioner,12v ac unit for rv,rv roof ac,camper air conditioner

12 Volt 10000 BTU rv air conditioner with heat unit,rv roof air conditioner,12v ac unit for rv,rv roof ac,camper air conditioner

FG icon

Regular price $895.00 USD
Regular price Sale price $895.00 USD
Sale Sold out
Tax included.
U.S. In Stock & Free Shipping
20220706110518_67ac95ec-dd38-4c9 - Goodmatchup

12V DC roof air conditioner(RV Air Conditioner Product Parameters)

Layout Structure : Top Mounted
Color Options: White
Input Rated Voltage(V): 12V DC(Cooling and Heating Type)
Special Features Cooling and Heating Type
Air Volume(M/H) : 450 m³/h
Rated Cooling Capacity 10000 BTU
Rated Heating Capacity 4500 BTU
Current (A): 30-70
Rated Power (W): 960 W
Undervoltage Protection: 9-11.2 V
Brownout Recovery: 12.5 / 2.5
Coefficient of Performance: ≥2.5
Refrigerant: R134A 400g-600g (pre-filled)
Speed Range (R/Min): 1600-3800
Power Cord Specification (mm²) 16 (2 to 5M)
Refrigerant Oil 90ml-120mlPOE68
Noise 45 db
Installation Type Window

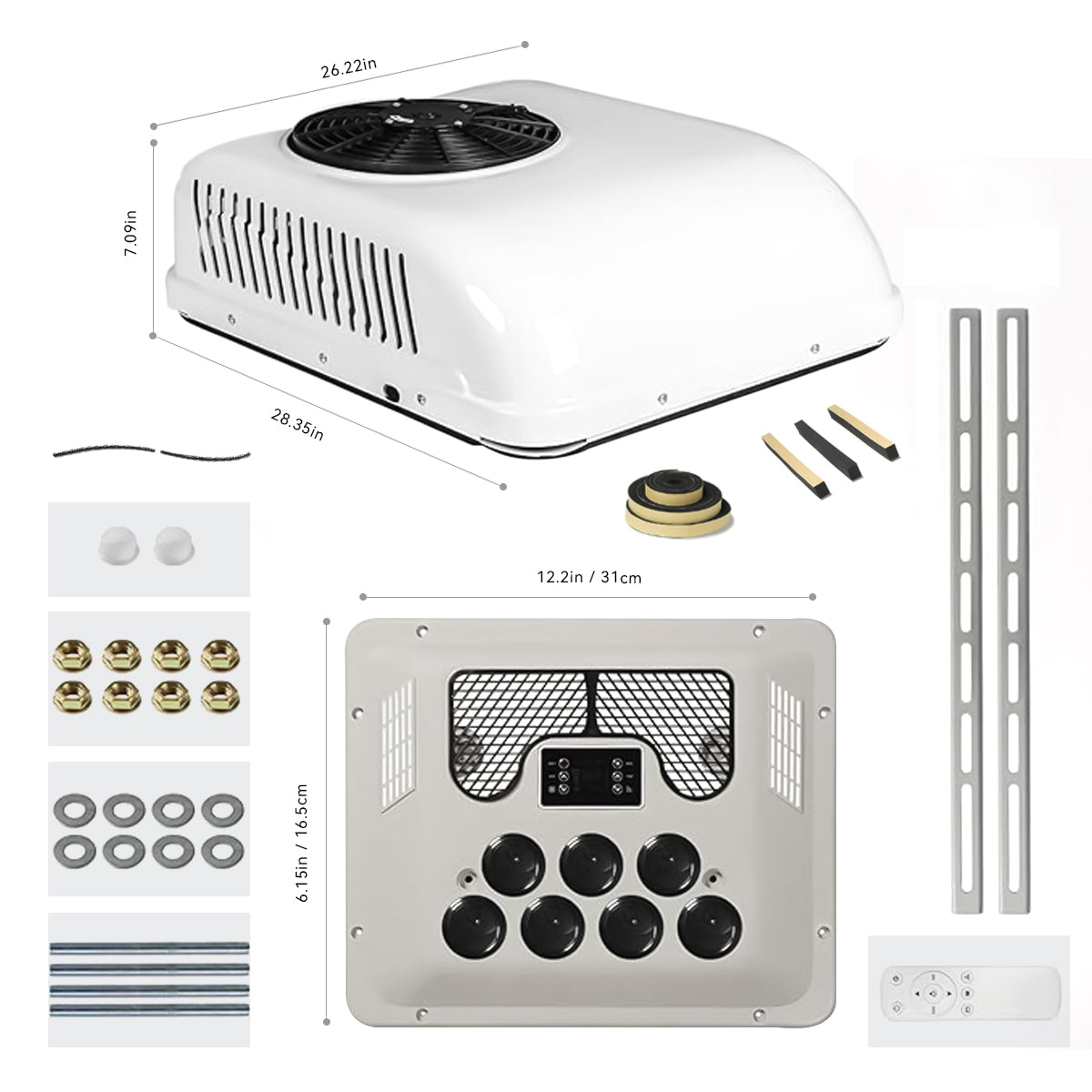

External Machine Size(IN): 28.35 * 26.22 * 7.09
Installation Size(IN): 6.5 * 12.2 IN / 16.5 * 31 CM
Weight 60lb
Included Components ‎Scroll Inverter Compressors,Dual-Wheel Evaporative Fan


About this item

  • Suitable for trucks, RVs, vans, excavators, passenger cars, trailers, tractors,agricultural vehicles, engineering vehicles, ships,  commercial vehicles, and new energy vehicles etc.
  • This electric air conditioner It is operated by a battery (generator). Even if the engine is turned off, you can still use the air conditioner.
  • Low noise, energy saving and environmental protection  This RV air conditioning unit runs smoothly with a volume of only 45 decibels, energy saving, economical, environmental protection, no pollution.Operating on a 12V power system, it features a Coefficient of Performance (COP) of ≥2.5, indicating high energy efficiency. It can operate for about 8 hours if powered by a 480Ah battery, and with a 600Ah battery, it can run for about 10 hours.
  • Function: cooling/heating,remote control, cooling capacity of 10000 BTU and a heating capacity of 4500 BTU. It can effectively adjust the temperature in your vehicle in a matter of minutes.The heating and cooling electric air-conditioning integrated machine is suitable for: engineering vehicles, cranes, RV, excavators, trucks, buses, agricultural vehicles, camping vehicles, heavy trucks, etc
  • Safety performance:Electrical safety,we have set up multi-directional electrical safety protection for products such as overvoltage,undervoltage,overcurrent and short circuit to ensure the electrical safety of products.The air conditioner meets the safety protection level of IP54.

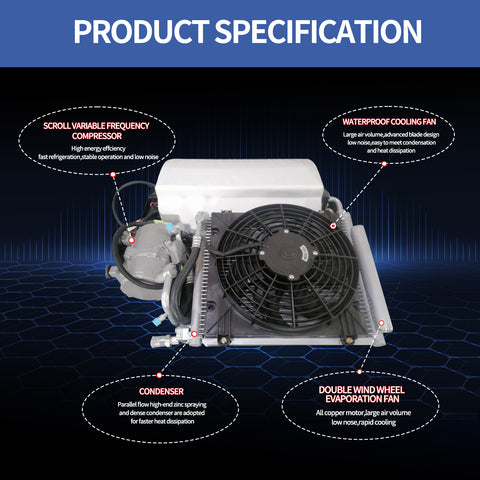

  • Scroll variable frequency compressor:High energy effciency fast refrigeration,stable operation and low noise.

  • Waterproof cooling fan:Large air volume,advanced blade design low noise,easy to meet condensation and heat dissipation.

  • 5-Gear wind speed :In refrigerating mode, free set from slow speed1600 r/min to fast wind speed 3800 r/min; fix wind speed in heating mode.
  • NOTE: Both with and without sunroof can be used, the roof opening size need to be larger than 225*299mm (8.86*11.77inch) and smaller than 440*580mm (17.32*22.83inch)
    Please check this before you order(the vehicle without a sunroof can be installed after opening the window according to the size)

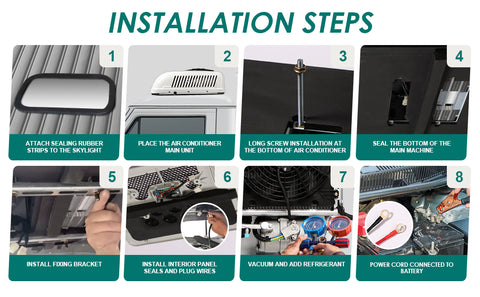

Installation steps(Installation video can send if need)

  1. Clean up the sunroof: Clean up around the sunroof and stick sponge glue. It is best to apply waterproof glue around the sponge glue to better prevent rainwater from entering the room.
  2. Install the air conditioner: Put the air conditioner on the roof, leaving the power cord outside.
  3. Mounting screws: Fix the long screws to the four screw holes on the bottom of the air conditioner, and fix them well.
  4. Paste the sponge glue: Paste the sponge in the middle of the bottom of the air conditioner.
  5. Install the fixing rod: Install the fixing rod on the screw and screw it well. The fixing rod can be installed in two directions, depending on the size of the sunroof.
  6. Install the panel: insert the panel plug and the bottom plug of the air conditioner into each other, and then fix the panel.
  7. Vacuum, add refrigerant: must be evacuated for 15-20 minutes, and then add 400g of R134a refrigerant.
  8. Connecting the power cord: Connect the power cord to the positive and negative poles of the battery, making sure not to connect them incorrectly. Red positive +, black negative -. 12V battery, the current needs 70 A.

Warranty:

1 Year Warranty

Install video can be sent to your email if need
