12V DC split air conditioning parameters

Layout Structure	Backpack
Color	White
Rated Voltage	DC 12V
Current Range	60-80A
Rated Cooling Capacity	12000 BTU
Air Volume	600m³/h
Speed Range	1000-3000 r/min
Rated Power	960 W
Undervoltage Protection	9-11.8 V
Performance Coefficient	≥2.5
Refrigerant	450g R134A (Not pre-filled)
Refrigerant Oil	90 ml-120 ml POE68
Noise	outdoor unit is 43 lb indoor unit is 14 lb
Indoor Unit Size	460160320 mm
Outdoor Unit Size	660490210 mm
Weight	59.5lb
Power Cord Specification	3.5 m*8

Features of split air conditioner products

Suitable for trucks, RVs, vans, excavators, passenger cars, trailers,tractors,agricultural vehicles, engineering vehicles, ships, commercial vehicles, and new energy vehicles etc.

DC Power: The DC electric air conditioner uses a high-efficiency electric scroll compressor and is powered by the vehicle battery. It keeps your cab cool even when the engine is off.Cooling capacity of 12000 BTU and an air volume of 600 m³/h, which can effectively adjust the temperature in your vehicle swiftly and efficiently.
Low noise: Designed with low-noise fans, the air conditioner operates at a noise level of just 30 dB, ensuring a peaceful and comfortable environment in your vehicle.
Energy saving, economical, environmental protection, no pollution: operating on a 12V power system, it features a Coefficient of Performance (COP) of ≥2.5, indicating high energy efficiency. It can operate for about 8 hours if powered by a 480Ah battery, and with a 600Ah battery, it can run for about 10 hours.
. Electrical safety: We have set up multi-directional electrical safety protection for products such as overvoltage, undervoltage, overcurrent,and short circuit to ensure the electrical safety of products. The air conditioner meets the safety protection level of IP54 .

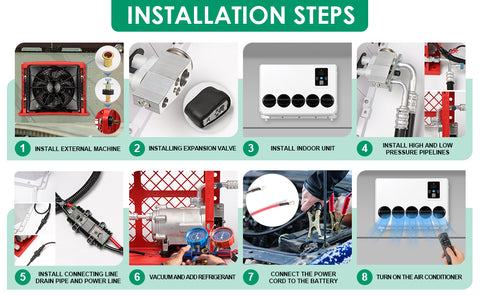

About Installation

Install the external machine: mark the drilling position, use an 8mm drill to drill holes, use a riveting tool to fix the rivet nut at the drilling point, install shock pads and sleeves at the holes of the external machine, and fix the external machine to the car .
Install the expansion valve: remove the iron sheet at the position of the expansion valve of the evaporator, and fix the expansion valve to the evaporator. The two black screws correspond to the two holes, so there is no need to worry about wrong installation.Then wrap it in black cotton wrap.
Install the indoor unit: first install the wooden board to the indoor wall, and then install the evaporator on the wooden board.
Install high and low pressure pipelines: first open a (50mm) hole in the car, and then install the rubber cover with three holes. The thick pipe is the low pressure pipe and is connected to the compressor. The thin tube is a high pressure tube and is connected to the condenser. Then connect the other end of the high and low pressure pipes to the holes corresponding to the expansion valve of the indoor unit, use long black screws and iron sheets to clamp the aluminum joints, and tighten the screws.
Install the connection line: connect the connection lines of the internal and external units, plug the power cord plugs into each other, and connect the drain pipe of the evaporator.
Vacuuming/Adding refrigerant: It needs to be vacuumed for 15-20 minutes, and then add refrigerant R134a/600g. The refrigerant can be added according to the pressure value. Generally, after the R134a refrigerant is injected into the air conditioning system, the pressure at the low pressure port is 35psi, and the pressure at the high pressure port is 140-180psi.
Connect the power cord: Connect the power cord to the battery, pay attention to the positive and negative poles of the battery, do not connect them wrongly, + positive / - negative. It is forbidden to connect it to the power-off switch and the power switch.
Turn on the air conditioner: Drive the air conditioner to see if it works properly. If the current is insufficient, the refrigerant is too much or not enough, the control panel will display a code, which can quickly troubleshoot.
