12volt rv rooftop air conditioner,rooftop ac,rooftop camper ac unit heating/cooling,roof mounted ac

About this item

• This electric air conditioner It is operated by a battery (generator). Even if the engine is turned off, you can still use the air conditioner. Low noise, energy saving and environmental protection is your best choice. Save thousands of dollars in fuel bills each year. Energy saving, economical, environmental protection, no pollution. Operating on a 12V power system, it features a Coefficient of Performance (COP) of ≥2.5, indicating high energy efficiency. It can operate for about 8 hours if powered by a 480Ah battery, and with a 600Ah battery, it can run for about 10 hours.
• Function: cooling/heating. Note: Since there is no refrigerant inside the air conditioner when leaving the factory, you need to manually add to start the air conditioner, otherwise the air conditioner will be damaged, remember R134a-400g
• The air conditioner has a robust cooling capacity of 10000 BTU and a heating capacity of 4500 BTU. It can effectively adjust the temperature in your vehicle in a matter of minutes.The heating and cooling electric air-conditioning integrated machine is suitable for: engineering vehicles, cranes, RV, excavators, trucks, buses, agricultural vehicles, camping vehicles, heavy trucks, etc.
• Both with and without sunroof can be used, the roof opening size need to be larger than 225*299mm (8.86*11.77inch) and smaller than 440*580mm (17.32*22.83inch)

12V DC roof air conditioner

• Layout Structure: Top-Mounted
• Color: White
• Rated Voltage: DC 12V (cooling and heating type)
• Current Range: 30-70A
• Rated Cooling Capacity: 10000 BTU
• Rated Heating Capacity: 4500 BTU
• Air Volume: 450 m³/h
• Rated Power: 960W
• Undervoltage Protection: 9-11.2V
• Coefficient of Performance: ≥2.5
• Refrigerant: R134A 400g-600g (pre-filled)
• Refrigerant Oil: 90ml-120ml POE68
• Speed Range: 1600-3800r/min
• Power Cord Specification (mm²): 16 (2 to 5M)

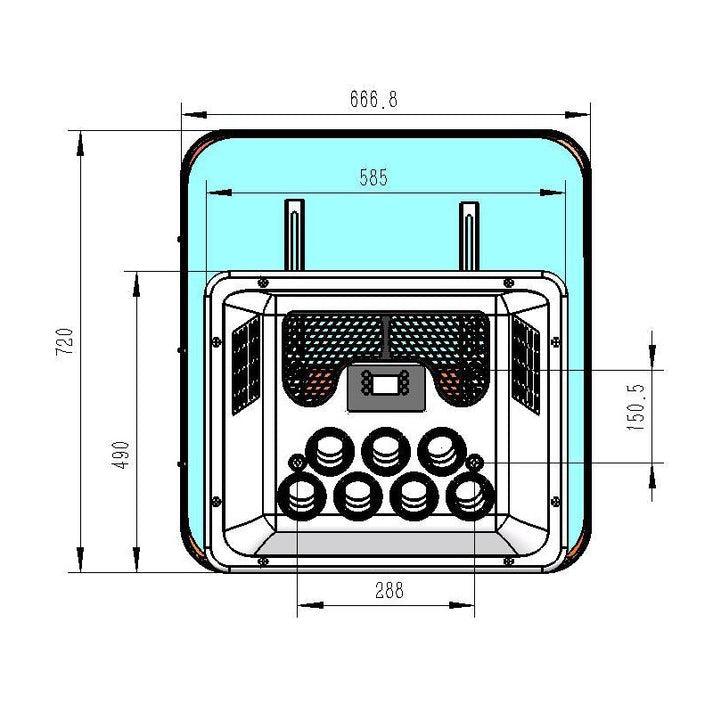

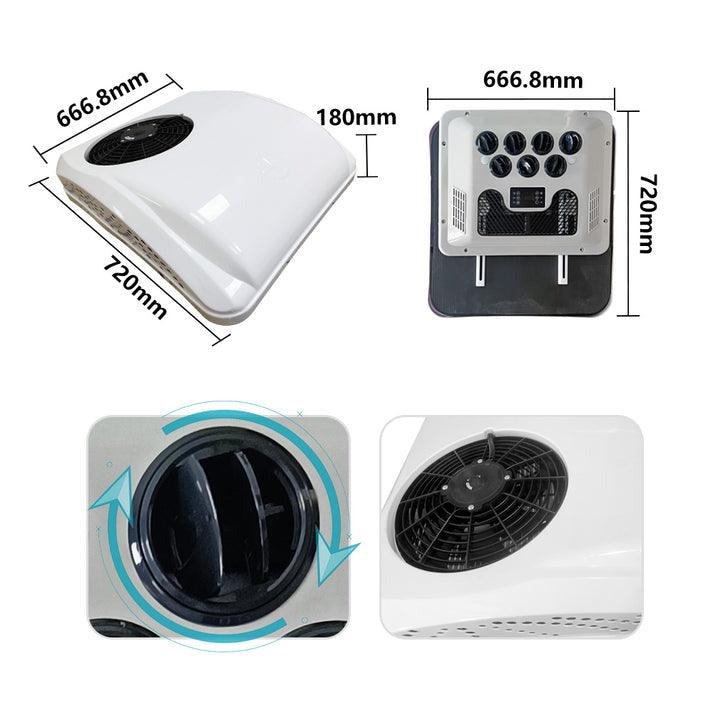

• Host Size: 666 *720 * 160 mm
• Weight: 33Lb

Installation steps

1. Clean up the sunroof: Clean up around the sunroof and stick sponge glue. It is best to apply waterproof glue around the sponge glue to better prevent rainwater from entering the room.
2. Install the air conditioner: Put the air conditioner on the roof, leaving the power cord outside.
3. Mounting screws: Fix the long screws to the four screw holes on the bottom of the air conditioner, and fix them well.
4. Paste the sponge glue: Paste the sponge in the middle of the bottom of the air conditioner.
5. Install the fixing rod: Install the fixing rod on the screw and screw it well. The fixing rod can be installed in two directions, depending on the size of the sunroof.
6. Install the panel: insert the panel plug and the bottom plug of the air conditioner into each other, and then fix the panel.
7. Vacuum, add refrigerant: must be evacuated for 15-20 minutes, and then add 400g of R134a refrigerant.
8. Connecting the power cord: Connect the power cord to the positive and negative poles of the battery, making sure not to connect them incorrectly. Red positive +, black negative -. 12V battery, the current needs 71A.

Shipment :

Free shipping,2-5 business days arrive

Warranty:

1 Year Warranty

24-Hour Expert Online: Solve your installation and product problems

Installation video can send if need
